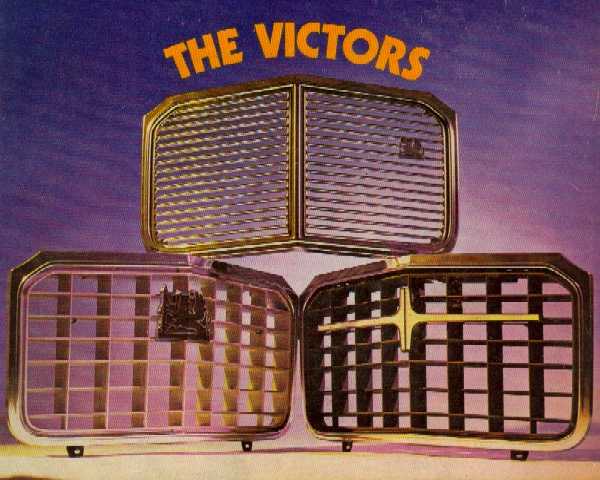

    !972 Vauxhall launch FE-Series. 3 Basic styles 3 different grilles, Victor (the upper), Ventora (the left) and VX 4/90 (at the right)

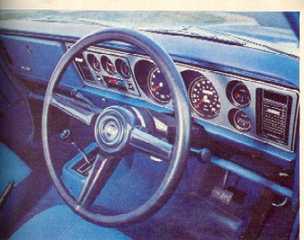

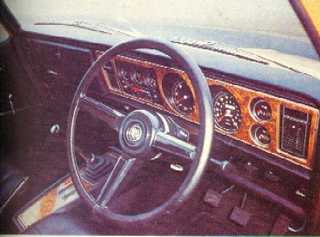

    Ventora                                                                          VX 4/90

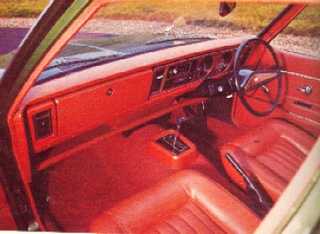

    Victor


    VEHICLE IDENTIFICATION


    • The vehicle identification plate is attached to the instrument panel, at the left-hand side, and can be read through the windshield glass. This plate is stamped with the model and chassis number.


    • A service parts identification plate (VIN) is attached to the right-hand front wheel house panel, adjacent to the battery. This plate bears the following information in the sequence shown:


      Model .. Destination .. Job No ... Paint Code .. Trim Code .. Option Codes


      94369 DOM 271239 3BL 1X2
      184,474






    VEHICLE IDENTIFICATION NUMBER

    • The vehicle identification number (VIN) consists of thirteen characters.
      • 1st character .. 9 .. This identifies Vauxhall Motors as the manufacturer and is constant on all Vauxhall passenger vehicles.
      • 2nd character Denotes the model range and vehicle flavor.
        • K .. Victor De-Luxe <-1975-> VX 1800
        • L .. Victor 2300 Super Luxury  <-1975-> VX 2300
        • M .. Victor 3300 Super Luxury
        • N .. VX 4/90 <-1975-> VX490
        • P .. Ventora <-1975-> VX 2300 GLS
      • 3rd and 4th character Together these identify the body style.
        • 35 .. 4 door estate
        • 69 .. 4 door saloon
      • 5th character Engine identification code.
        • J .. 1759cc 4 cyl. - Standard Compression
        • H .. 1759cc 4 cyl. - Low Compression
        • K .. 1759cc 4 cyl. - Limited Power Output  (code 099)
        • N .. 2279cc 4 cyl. - Standard Compression
        • M .. 2279cc 4 cyl. - Low Compression
        • P .. or Q 2279cc 4 cyl. – Twin carburetors  (Q = 1975 ->)
        • S .. 2793cc 6 cyl.
        • W .. 3293cc 6 cyl.
      • 6th character An alpha character denoting model year.
        • 2 .. 1972
        • C .. 1973
        • D .. 1974
        • E .. 1975
        • F .. 1976
        • G .. 1977
        • H .. 1978
      • 7th character Manufacturing Plant.
        • Y .. Luton
        • X .. Ellesmere Port
      • 8th to 13th characters These form the chassis number.
    UNIT IDENTIFICATION

    • The transmission has a manufacturing date code on the rear cover.


    • The overdrive unit has a serial number plate attached to the right-hand side of the main casing. Units for four-cylinder models have the prefix 28/115805/ to the serial number whilst six-cylinder units have the prefix 28/115804/.


    • The rear axle has a manufacturing date code stamped on the housing cover.

      • The rear axle ratio is indicated by a letter stamped on the pinion housing. The interpretation of the letter is:


        C 10/39
        D 11/38
        H 11/34
        J 10/41
        K 11/41



      • After model year 1976 there was only:


        VX 2300 11/38
        VX 2300 GLS  11/38
        VX 1800 11/41



    • On four-cylinder engines, the engine number is at the right-hand rear of the cylinder block, adjacent to the clutch housing.
      • A code letter "S" or "EL" cast on the side of the cylinder block, identifies 1759 and 2279 cc engines respectively.
      • A code letter "H" or "L" stamped on the cylinder block, adjacent to the distributor, identifies high and low compression ratios respectively.


    • On six-cylinder engines, the engine number is stamped on a pad on the cylinder block, adjacent to the fuel pump.
      • The number "28" or letters "BH" stamped on a pad between the distributor and the fuel pump identify 2793 and 3293 cc engines respectively.
    OLD DESIGNATION NEW DESIGNATION MODEL
    94369 9K69J Victor De-Luxe saloon (1759cc std)
    94369 9K69H Victor De-Luxe Saloon (1759cc low)
    94369 9K69M Victor De-Luxe Saloon (2279cc low)
    94369code 474 9K69N Victor De-Luxe Saloon (2279cc std)
    94335 9K35J Victor De-Luxe Estate Car (1759cc std)
    94335 9K35H Victor De-Luxe Estate Car (1759cc low)
    94335 code 474 9K35N Victor De-Luxe Estate Car (2279cc std)
    94335 code 474 9K35M Victor De-Luxe Estate Car (2279cc low)
    94569 9L69N Victor Super Luxury Saloon (2279cc std)
    94569 9L69M Victor Super Luxury Saloon (2279cc low)
    94535 9L35N Victor Super Luxury Estate Car (2279cc std)
    94535 9L35M Victor Super Luxury Estate Car (2279cc low)
    94669 9M69W Victor Super Luxury Saloon (3293cc) ... car never produced
    94669 9M69S Victor Super Luxury Saloon (2793cc) ... car never produced
    94635 9M35W Victor Super Luxury Estate Car (3293cc)
    94635 9M35S Victor Super Luxury Estate Car (2793cc)
    94769 9N69P VX 4/90 Saloon (2279cc twin carb. 1973-1974)
    94769 9P69W Ventora Saloon (3293cc)
    94869 9P69S Ventora Saloon (2793cc)
    - 9P35W Ventora Estate Car (3293cc)
    - 9K69J/H/K VX 1800 Saloon (J=1759cc std./ H=1759cc low. / K=1759cc limited power, code 099)
    - 9L69N/M VX 2300 Saloon (N=2279cc std. / M=2279cc low)
    - 9P69N VX 2300 GLS Saloon (2279cc)
    - 9K35J/H/K VX 1800 Saloon (J=1759cc std./ H=1759cc low. / K=1759cc limited power, code 099)
    - 9L35N/M VX 2300 Estate (N=2279cc std. / M=2279cc low)
    - 9N69Q VX 490 Sedan (2279cc twin carb. + Getrag 5-gear transmmission)

    Option Code OPTION
    Soon...
